Wireless networking with HDL150 bidirectional link

HDL150 video transceiver supports two operating modes: Access Node or Central Node. It can be managed through web UI. HDL150 supports features of maximum 16 Access Nodes connected to a Central Node. All of the Nodes are in a same wireless LAN and share the whole transmission bandwidth (maximum 30Mbps@20MHz throughput). Data from Central Node to Access Node, we call downlink, and data from Access Node to Central Node, we call uplink. Uplink and downlink stream ratio can be controlled through web UI. When using HDL150 for Point-to-Point transmitting, uplink and downlink share the whole transmission bandwidth (maximum 30Mbps@20MHz throughput) too. HDL150 supports networking mode: Point -to-Point, Point-to-Multipoint, Relay, and Mesh (specify mesh version when order).

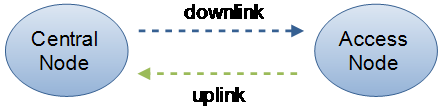

Point-to-Point transmitting

Point-to-Multipoint transmitting

Relay transmitting

Mesh transmitting (Specify)
