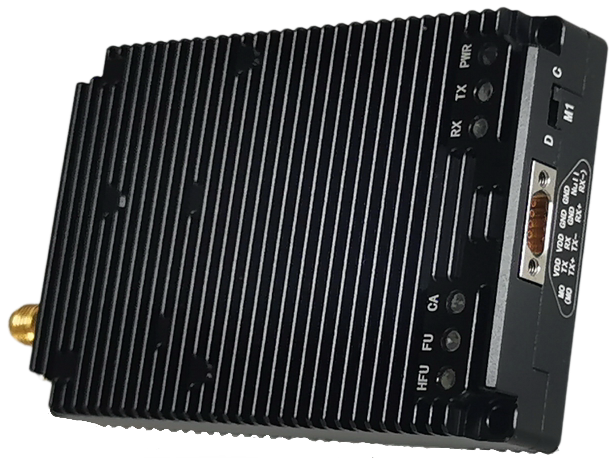

20W Data Link Mesh Radio

HNC2 20W Data Link Mesh Radio

-- Supports up to 740kbps wireless link rate

-- Supports Point-to-Point, Point-to-Multipoint, Multipoint-to-Point and Mesh topologies

-- Supports maximum 1024 nodes mesh network

-- High sensitivity: -114dBm@125kHz

-- Supports frequency hopping(FHSS)

HNC2 self-organizing network(Mesh) data link radio realizes the centerless long-distance communication between large-scale nodes, all nodes can communicate with each other independently without interfering, supports large-scale dense node access to wireless transmission, dynamic networking and flexible reorganization, supports full-multiplexing communication, the node sends data at the same time it can also receive the data of all other nodes without interfering with each other, and in the absence of the center, it can realize the interoperability of any node and all other nodes in the network. Without interfering with each other, it can realize the interconnection between any node in the network and all other nodes in the case of no center.

HNC2 data link mesh radio supports large-scale node access, multi-hop self-organizing network, 20W transmit power, -114dBm sensitivity, maximum 740kbps effective data transmission rate, 2ms ultra-low latency, which can be used for swarming drones, Internet of Things, data chain, remote control, data collection, artificial intelligence, military equipment and other application scenarios. HNC2 data link mesh radio has a variety of models to choose from, the appearance and functional characteristics of each model is the same, only the working frequency band and networking scale is different.

HNC2 20W data link mesh radio models

Features

•    Network construction time: within 1 second

•    Wireless transmission delay: minimum 2ms

•    Dynamic topology: support dynamic topology, support node joining and leaving, network topology change and deformation can be normal communication;

•    RF power: 20W(43dBm)

•    Sensitivity: -114dBm@125kHz, -111dBm@250kHz, -108dBm@500kHz, -105dBm@1MHz

•    Frequency stability: ≤1ppm

•    QPSK modulation LDPC coding

•    Encryption: 128-bit encryption

•    Low power consumption: less than 1.5W(0.06A/24V) when receiving, transmission power consumption (B is in bytes):

When transmitting data at 1.2KB/s, the power consumption is around 2.4W(0.1A/24V)；

When transmitting data at 3.4KB/s, the power consumption is around 3.9W(0.16A/24V);

When transmitting data at 6.4KB/s, the power consumption is around 5.5W(0.23A/24V);

When transmitting data at 12KB/s, the power consumption is around 9.6W(0.4A/24V);

When transmitting data at 26KB/s, the power consumption is around 19.2W(0.8A/24V);

When transmitting data at 37KB/s, the power consumption is around 24W(1A/24V);

When transmitting data at 48KB/s, the power consumption is around 32W(1.35A/24V).

•    Operating voltage: 24V as default, supports a wide voltage input of 7-36V. The 7V power supply has a transmission power of 2W, the 12V power supply has a transmission power of 5W, the 18V power supply has a transmission power of 10W, the 24V power supply has a transmission power slightly greater than 20W, and the 20-36V power supply has a transmission power of 20W-30W. The power supply capacity requirement is above 2.5A @ 24V (20W).

•    Operating temperature: -40～+55°C

•    Dimensions: 82.5*52*16mm

•    Weight: 90.7g
