-- TDD OFDM full duplex wireless transceiver for video and data Link

-- Up to 30Mbps Iperf Throughput @20MHz channel

-- Supports Point-to-Point and Point-to-Multipoint Networks or Mesh networks

-- Interface through web browser or control uart

-- 2 Ethernet and 3 channel uart data link

-- Long distance wireless transceiver with 2W or 5W RF power

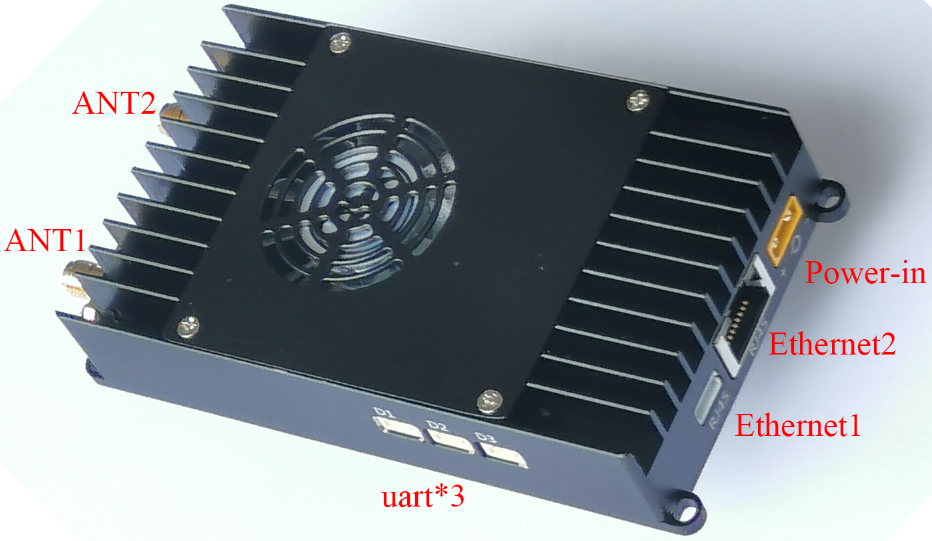

HCL536 was designed for video and data wireless transmission with two way wireless data link. This OFDM radio device works at 800MHz or 1.4GHz bands, with frequency hopping technology (FHSS) to make sure better stability signal communication.

Features:

•    TDD OFDM modulation

•    Supports 806~826HMz band or 1428~1468MHz band or 1420~1530MHz band

•    Supports FHSS inside each band

•    1.4/3/5/10/20MHz band widths

•    Maximum 30Mbps@20MHz throughput

•    RF transmission maximum power: 2W or 5W

•    Constellation: QPSK, 16QAM, 64QAM, self-adaption

•    Sensitivity: -108dBm(1Mbps)

•    Supports IP data transmission(2 Ethernet port)

•    Supports serial data transmission(3 channel, RS232/TTL/Sbus optional)

•    1~7km(ground-to-ground), 22~100km(UAV-to-ground, optional distance grade)

•    Web UI and control uart for management

•    AES128 encryption

•    Uplink and downlink stream control

•    Networking mode: Point-to-Point, Point-to-Multipoint, Relay, and Mesh(specify)

•    Movement Speed: Supports no less than 300km/h

•    Compact size and light weight

•    Rugged aluminum alloy housing

•    Power input: 12~18V(2W), 24~28V(5W)

•    Power consumption: <12W(RF Power 2W),    <22W(RF Power 5W)

•    Dimensions: 103.4*61.4*22 mm

•    Weight: 142g

IP camera video can be connected with HCL536 directly via Ethernet port. HDMI/SDI/AHD/AV camera video can be encoded with Hincn SE11/SE10 device and then work with HCL536 via Ethernet connection.

And Hincn SD10 H.265/H.264 video decoder device can work with HCL536 via Ethernet connection on the video received side for realtime video monitoring.

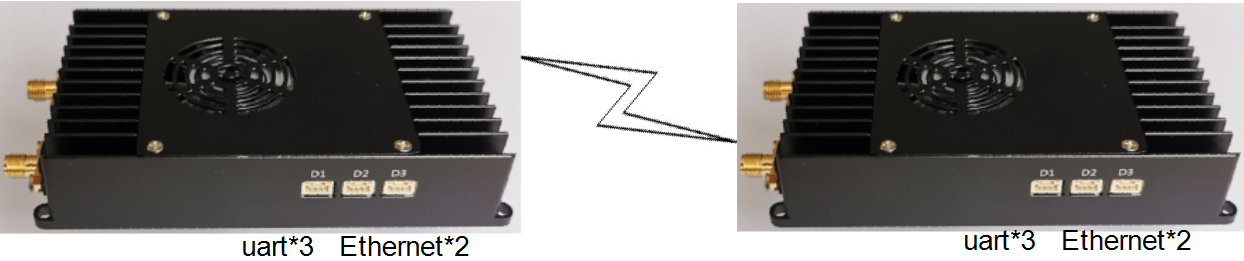

The HCL536 system has a built-in uart to Ethernet TCP server. The D2 and D3 uart ports can use the uart to Ethernet TCP server function to achieve uart to Ethernet data conversion, and it can support both TCP and UDP protocols.
