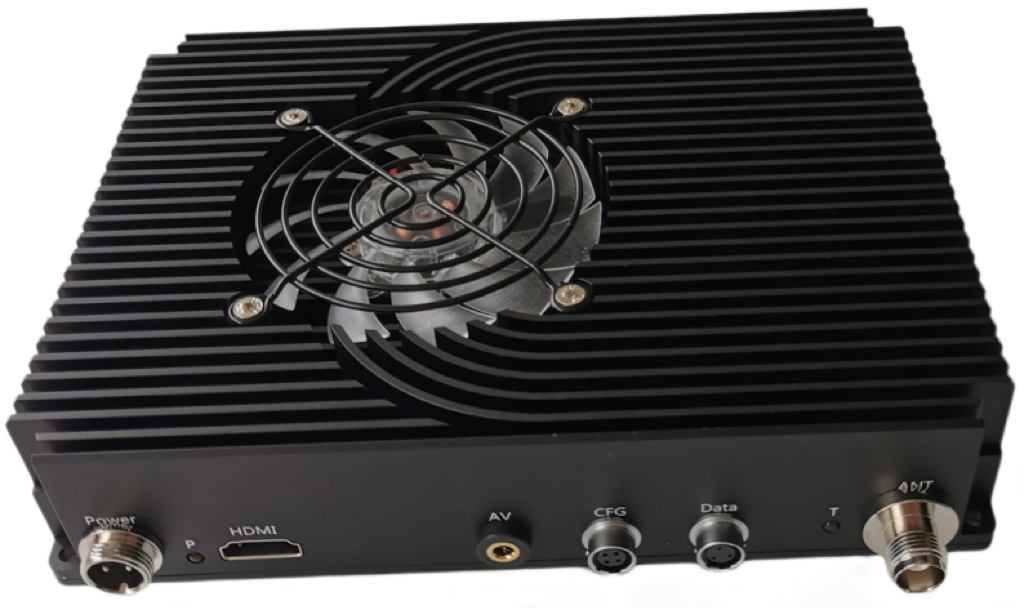

HCT531 COFDM Wireless Downlink Transmitter

HCT531 COFDM Wireless Downlink Transmitter

---10W/20W HD video COFDM wireless downlink transmitter with HDMI/ AV input interface

The HCT531 wireless digital video transmitter was designed for use with HD or SD cameras, it's a superior miniature wireless video transmitter designed to capture real-time, high-quality video from Point of View Cameras, UAV/UGV/Body Cams/Concealments, and sports cameras. The transmitter features HDMI or AV inputs with COFDM modulation technology and H.264/H.265 encoding that complete video audio transmission in high-speed motion and NLOS (none line of sight) conditions with low latency. The HCT531 delivers up to 10W or 20W of power in a small metal case weighing less than 910 grams, providing long range, reliable HD video transmission.

Features:

•    COFDM modulation and H.264/H.265 video compression;

•    Full HD resolution, 1080p/i @60fps;

•    Supports two channel videos at the same time(optional)

•    Great security by AES encryption;

•    Modular design and high integration;

•    Stable signal transfer in NLOS and high-speed motion;

•    Adjustable working frequency, band width, bitrates, RF power, etc.

Specification:

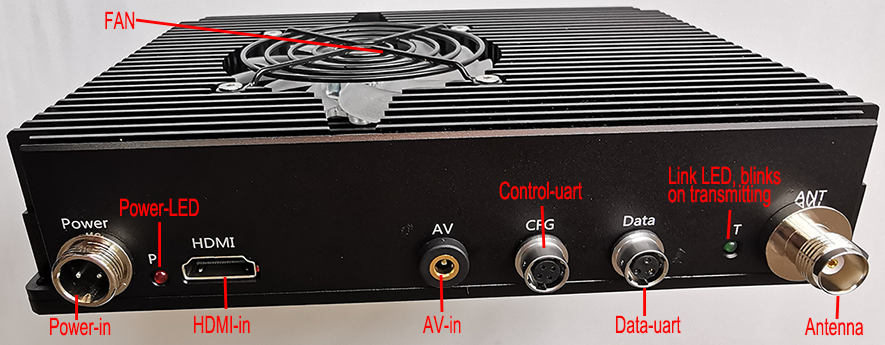

IO

HD Video input：HDMI Type-A connector

Composite Video input：3.5mm earphone connector

UART data：YC8-3 connector, TTL 3.3V by default (optional RS232)

TTL UART control： YC8-4 connector, TTL 3.3V

Power in：GX12-2 connector

RF output：TNC female

Modulation

Modulation Formats：COFDM(DVB-T)

Carriers：2K

Bandwidth：Configurable from 1MHz to 8MHz, step by 1KHz

FEC：1/2, 2/3, 3/4, 5/6, 7/8

Guard interval：1/32, 1/16, 1/8, 1/4

Constellation：QPSK, 16QAM, 64QAM

Bitrates：0.5Mbps to 31.67Mbps

RF

Frequency Bands：Specify central working frequency F0 with band width about F0±15MHz, ranges available from 200~860MHz Tuning Step size：1KHz

Transmission power：10W(40dBm) or 20W(43dBm)

Video and Audio

Video input：HDMI or CVBS, auto-detected after system start-up Optional: two channel video input/encoding/transmit at the same time；

Video formats：1080@60P, 1080@50P, 1080@30P, 1080@25P, 1080@24P, 1080@60I, 1080@ 50I, 1080@30I, 720@60P, 720@50P, 720@30P, …… 720*480 60I(NTSC), 720*576 50I(PAL)

Video Coding：H.264/H.265

Audio input：Embedded HDMI or analog audio

Audio Coding：AAC, 16bit, stereo, 32Kbps

Encryption    AES256

Monitoring and control

Comprehensive transmitter setup with our Config Panel or PC or other device via Control UART.

Temperature range

Full specification:  0° to +55°C Ambient

Storage: –40° to +80°C

Physical Characteristics

Weight: 906g

Dimensions: 180*136*38mm (not including connectors out of the board)

Power requirements

Input range: 24~30VDC (28V as default)

Power consumption: <2.8A@24V(10W RF power) , <3.1A@24V(20W RF Power)

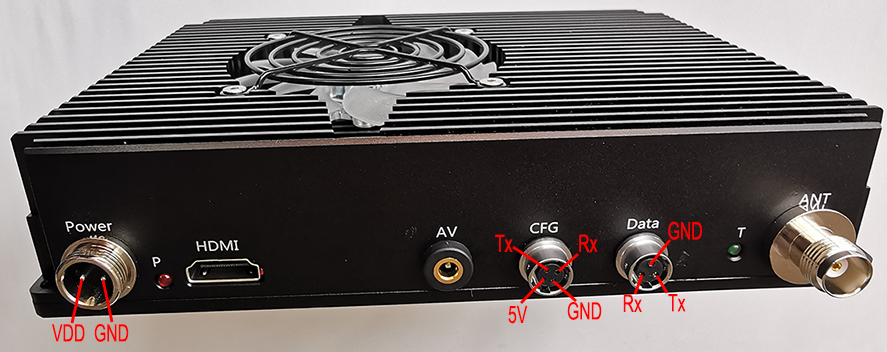

IO signals
