150km long range TDD full duplex 10W Data/Video Wireless Transceiver HCL551

150km long range 10W Data/Video Wireless Transceiver HCL551

HCL551 was designed for video and data wireless transmission with two way wireless data link. This OFDM radio device works at 800MHz or 1.4GHz bands, with frequency hopping technology (FHSS) to make sure better stability signal communication.

Features:

•    TDD OFDM modulation

•    Supports 806~826HMz band or 1428~1468MHz band or 1420~1530MHz band

•    Supports FHSS inside each band

•    1.4/3/5/10/20MHz band widths

•    Maximum 30Mbps@20MHz throughput

•    RF transmission maximum power: 10W(40 to 42dBm)

•    Constellation: QPSK, 16QAM, 64QAM, self-adaption

•    Sensitivity: -108dBm(1Mbps)

•    Supports IP data transmission(2 Ethernet port)

•    Supports serial data transmission(3 channel, RS232/TTL/Sbus optional)

•    1~15km(ground-to-ground), 30~150km(UAV-to-ground, optional distance grade)

•    Web UI and control uart for management

•    AES128 encryption

•    Uplink and downlink stream control

•    Networking mode: Point-to-Point, Point-to-Multipoint, Relay, and Mesh(specify)

•    Movement Speed: Supports no less than 300km/h

•    Compact size and light weight

•    Rugged aluminum alloy housing

•    Power input: 24~30V, 28V as default, maximum 2.8A@28V power current rating

•    Power consumption    <40W(RF Power 10W)

•    Dimensions: 131.9*67.7*28mm

•    Weight: 252g

Specification

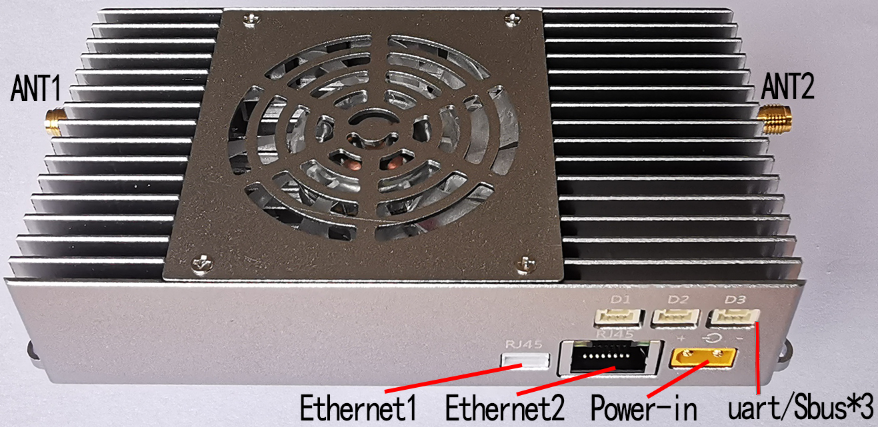

Ethernet 1

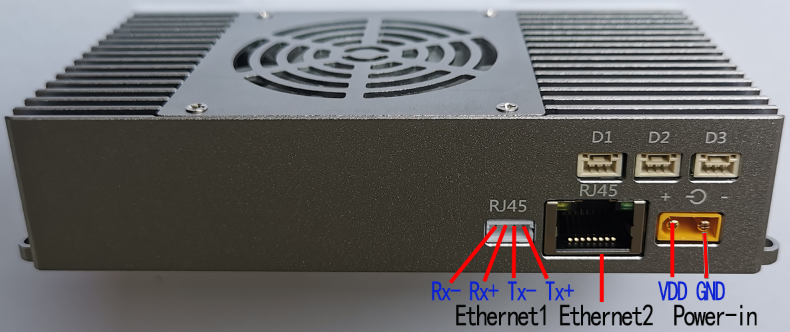

Ethernet 1 is bridged connection with Ethernet 2 on board inside the device. It’s a 4PIN ZH1.5mm connector.

Ethernet 2

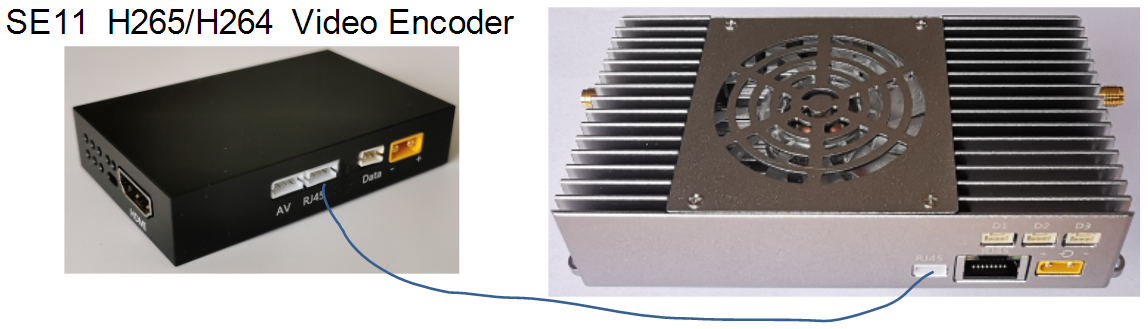

Ethernet 2 is bridged connection with Ethernet 1 on board inside the device. It’s a RJ45 connector. IP camera video can be connected with HCL551 directly via Ethernet port. HDMI/SDI/AHD/AV camera video can be encoded with our SE11 device and then work with HCL551 via Ethernet connection.

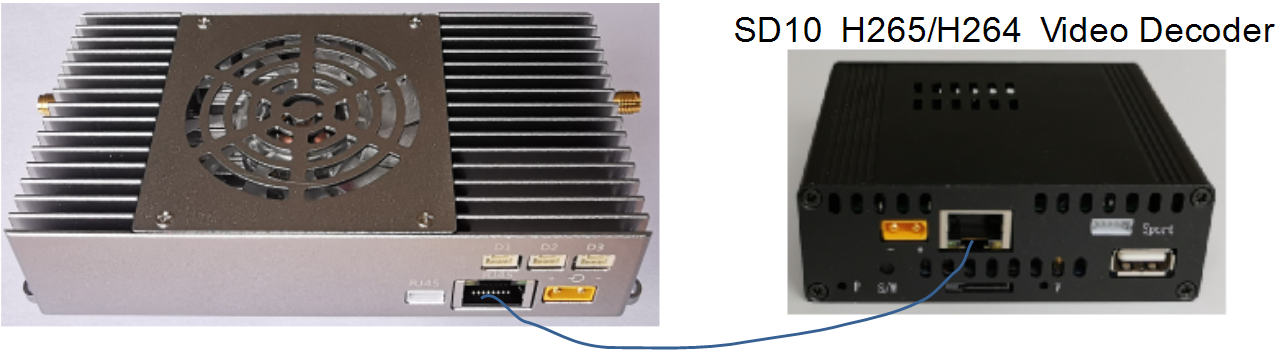

Hincn SD10 H.265/H.264 video decoder device can work with HCL551 via Ethernet connection on the video received side for realtime video monitoring.

Data uart

3Pin GH1.25mm lockable connector*3, 3 channel uart( RS232/TTL/Sbus optional ).

D1 uart data is wireless transmitted via link layer protocol, D1 uart will be assembled as RS232 uart as default, it can also be assembled as TTL uart according to customers requirement.

D2 uart is wireless transmitted via IP protocol, D2 uart will be assembled as RS232 uart as default, it can also be assembled as TTL uart or Sbus port(GND/Sbus-in/Sbus-out) according to customers requirement.

D3 uart is wireless transmitted via IP protocol, D3 uart will be assembled as RS232 uart as default, it can also be assembled as TTL uart according to customers requirement. D3 uart can also be set as control uart. Baud rate of the three uart can be setup by web UI.

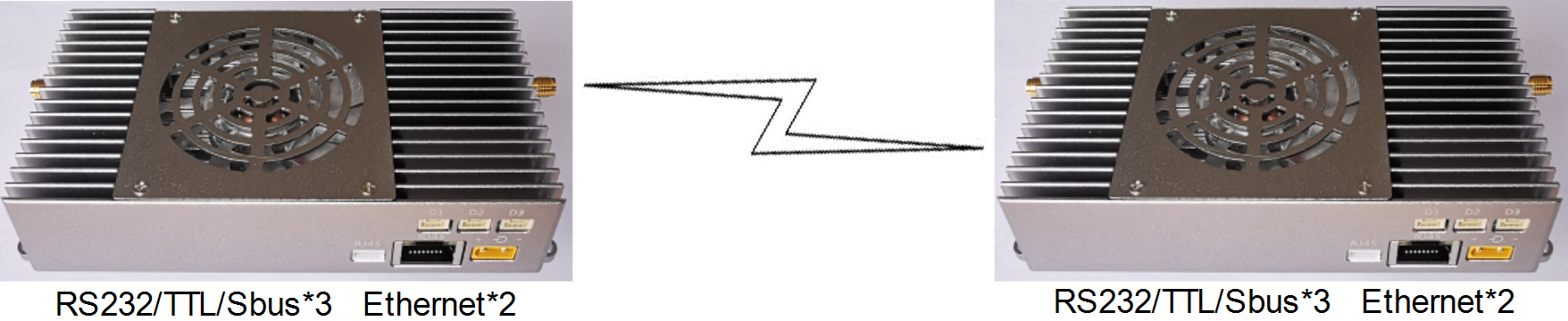

Wireless networking with HCL551

cHCL551 supports two operating modes: Access Node or Central Node. It can be managed through web UI. HCL551 supports features of maximum 16 Access Nodes connected to a Central Node. All of the Nodes are in a same wireless LAN and share the whole transmission bandwidth (maximum 30Mbps@20MHz throughput). Data from Central Node to Access Node, we call downlink, and data from Access Node to Central Node, we call uplink. Uplink and downlink stream ratio can be controlled through web UI. When using HCL551 for Point-to-Point transmitting, uplink and downlink share the whole transmission bandwidth (maximum 30Mbps@20MHz throughput) too. HCL551 supports networking mode: Point -to-Point, Point-to-Multipoint, Relay, and Mesh (specify mesh version when order).
