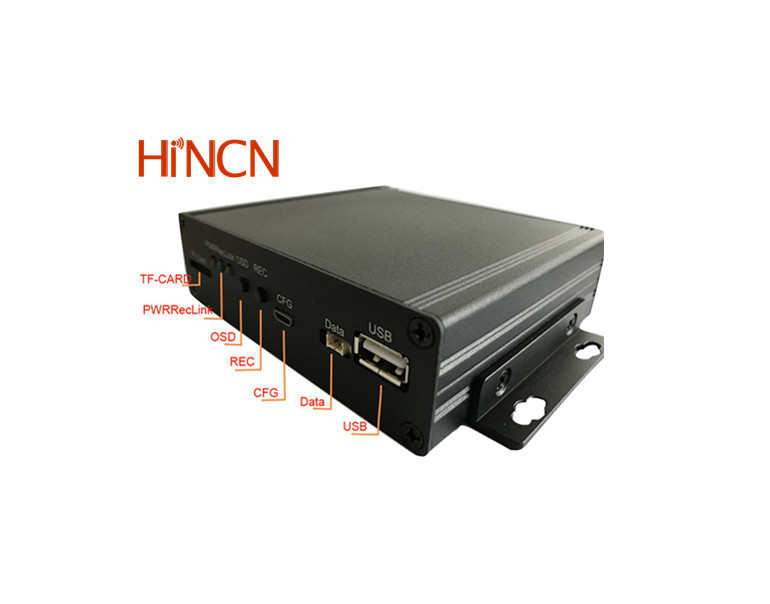

Mini Wireless Video Receiver
HC-900 mini wireless video receiver, Using advanced multi-carrier diversity reception technology, Support high speed movement and non line of sight(NLOS) reception. It can simultaneously output multiple video including HD and SD video. Widely used in security, emergency communications etc. Realize the remote video transmission and monitoring under the condition of mobile non line of sight.
Mini Wireless Video Receiver
HC-900 mini wireless video receiver, Using advanced multi-carrier diversity reception technology, Support high speed movement and non line of sight(NLOS) reception. It can simultaneously output multiple video including HD and SD video. Widely used in security, emergency communications etc. Realize the remote video transmission and monitoring under the condition of mobile non line of sight.
Feature
COFDM model H.264/MPEG2 video decoding
Support NLOS ,high speed movement transmission
Dual antenna multi- carrier diversity reception
HDMI、CVBS、USB ports simultaneously output Audio video
Specfication
| Model No. | HC-900 |
| Transmission Characteristics | |
| Demodulation | COFDM QPSK(4QAM),16QAM,64QAM |
| Frequency | 200-860MHz |
| Decoding | MPEG2/H.264 |
| RF bandwidth | 2MHz~8MHz, 1KHz stepping |
| Receive Sensitivity | -104dBm/2MHz |
| Data Characteristics | |
| Video output | HDMI: support HD1080,720P,576,480； CVBS: 720*480 60I (NTSC) |
| Video compression | H.264 |
| RF input | SMA, diversity reception |
| Parameter control method | Through digital LED control panel/LCD display control panel |
| Decryption | 256-bit AES(can set user 's password) |
| Electrical Characteristics | |
| Voltage | DC6V-15V |
| Current | 230mA@12V |
| Physical Characteristics | |
| Demension | 115*90*34mm |
| Weight | 243g |
